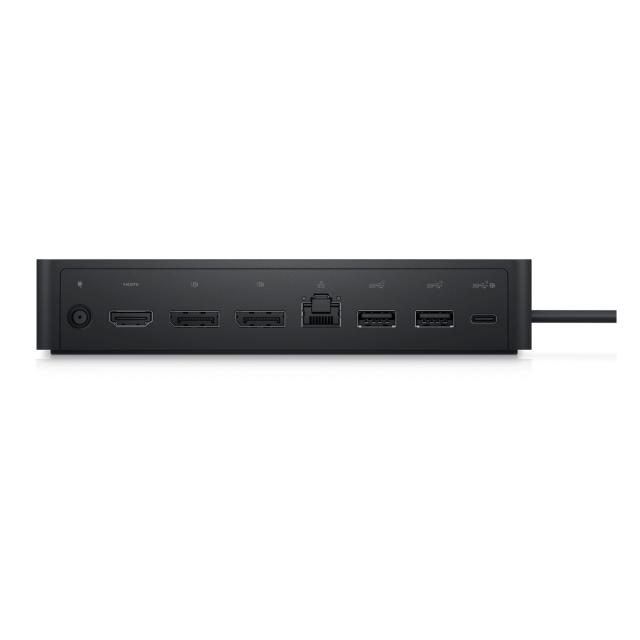

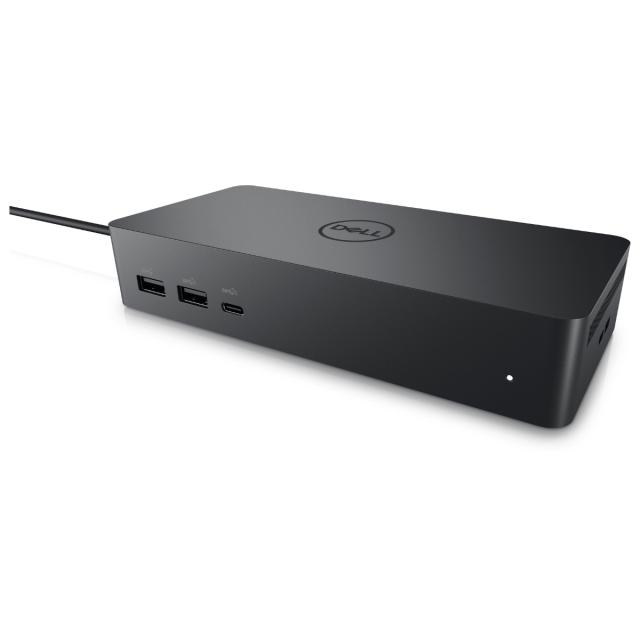

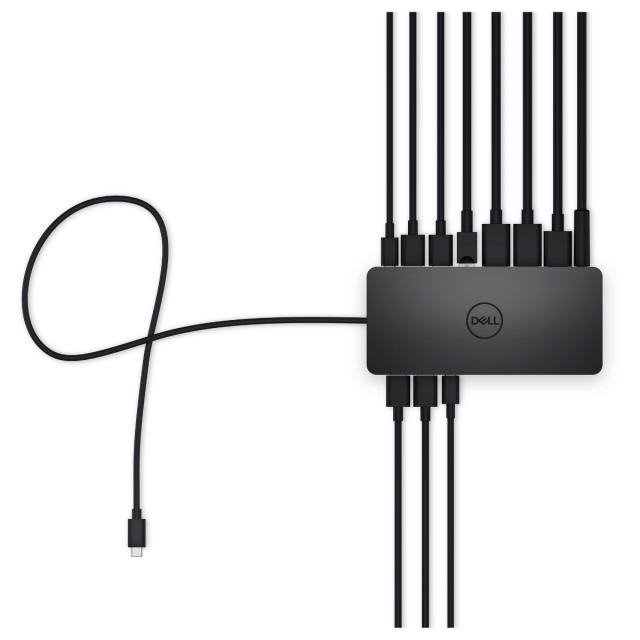

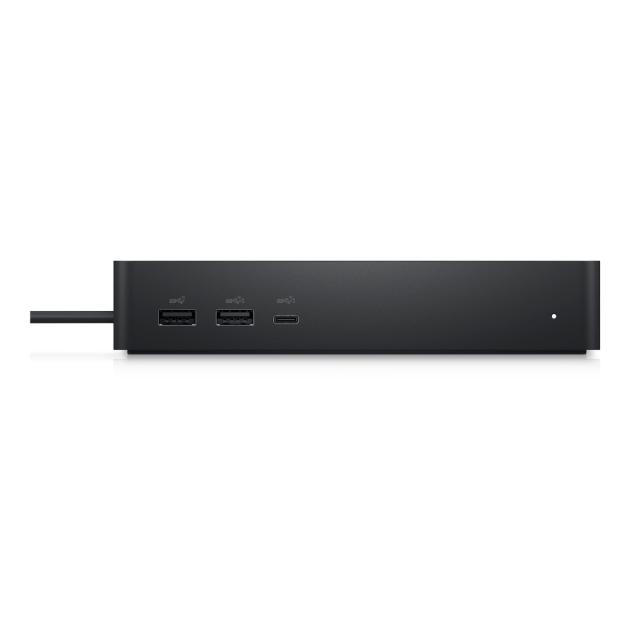

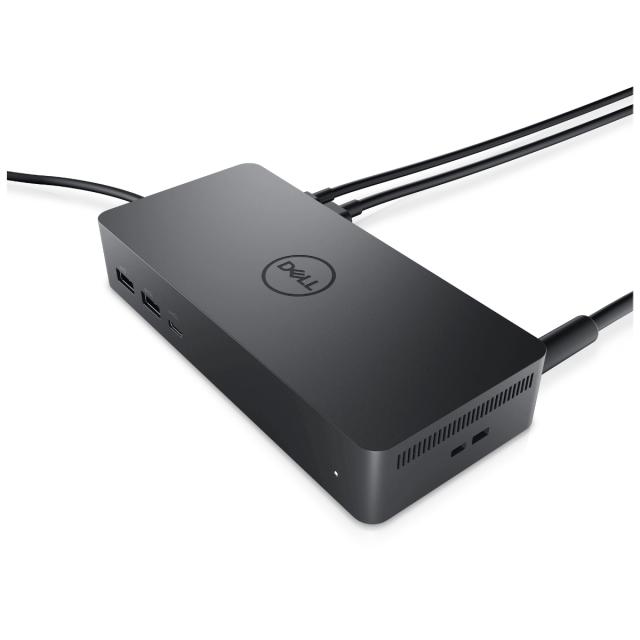

DELL UD22 - Universal USB-C Dock 130W - EU
DELL-UD22
LOG IND FOR AT SE PRISER
ETA er ikke tilgængelig
EAN: 5397184718841
Produktbeskrivelse
- Dell universal dock is designed for USB-C notebooks. It offers extensive ports for diverse device and display connections, supports quick setup through Hybrid DP Alt Mode, enables up to four 4K displays, and provides fast charging at 96W. With intelligent management and a customizable workspace, it enhances connectivity and productivity for users.
-
Display Support
If PC has DisplayLink drivers installed:
For a HBR2* PC
2 x 4K @ 60Hz + 2 x FHD @60Hz
2 x 4K @ 60Hz + 1 x 4K @30Hz
For a HBR3 PC
2 x 4K @ 60Hz + 2 x QHD @60Hz
2 x 4K @ 60Hz + 1 x 4K @30Hz
For HBR3 PC (supporting Display Stream Compression)
4 x 4K @ 60Hz
If PC does not have DisplayLink drivers installed:
For a HBR2 PC
2 x FHD @60Hz
1 x 4K @ 30Hz
For a HBR3 PC
2 x QHD @60Hz
2 x 4K @ 30Hz
For HBR3 PC (supporting Display Stream Compression)
2 x 4K @ 60Hz
Max Resolution
5K @ 60Hz with HBR3 systems supporting
Display Stream Compression
Video Interfaces
1 x HDMI 2.0
2 x DP 1.2
1 x USB-C 3.2 Gen2 with DisplayPort 1.4 Alt Mode
USB Ports
USB-A: 4 x USB 3.2 Gen 2 (1 with PowerShare)
USB-C: 1 x USB 3.2 Gen 2 with PowerShare; 1 x USB 3.2
Gen 2 with DisplayPort 1.4 Alt Mode
Networking
Gigabit Ethernet
Security Slot Type(cable lock sold separately)
1 x Kensington security-cable slot
1 x Kensington nano lock slot
LED Indicators
Power Adapter LED
Dock Status Indicator
RJ45 LEDs
Power
Power Adapter 130 Watt AC with up to 96 Watt power delivery to any USB-C Notebook
Dimension and Weight
166mm x 76mm x 32mm
6.53in x 2.99in x 1.26in
416 g (0.92 lb)
Operating Systems
Windows 10
Windows 11
Ubuntu 20.04 and later
Mac OS 12.2.1 and later
ChromeOS R100 and later
Systems Management
Wireless vPro supported by the notebook, tablet, or workstation
Kernel Direct Memory Access (DMA) protection
Management Features
Wake-On-LAN3
MAC address pass-through
What’s in the Box
Docking station
Power adapter and power cord
Documentation (Quick Start Guide, Safety, Environmental, and Regulatory Information)
-
High Power Delivery
Extend the fast charging experience of Dell systems to all laptops with uniform 96W power delivery
Highest number of display support
Empower users to multitask and enhance productivity by facilitating the connection of up to four 4K displays
Highest number of ports
Seamlessly connect to multiple devices and displays, crafting your ideal workstation
Dual support with Hybrid USB-C connectivity
Initiate fast setups even without DisplayLink drivers through the utilization of Hybrid DP Alt Mode
